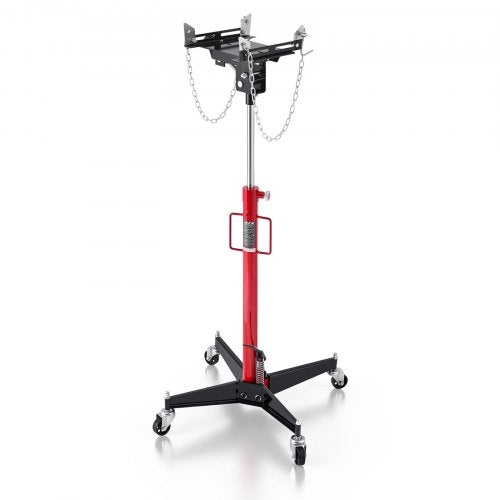

Hydraulic Transmission Jack, 1100 lbs / 0.5 Ton Lifting Capacity Telescoping Transmission Jack with Foot Pedal, 360° Swivel Wheel, 127-202 cm High Lifting Height, Lift Hoist for Garage/Shop

Hydraulic Transmission Jack, 1100 lbs / 0.5 Ton Lifting Capacity Telescoping Transmission Jack with Foot Pedal, 360° Swivel Wheel, 127-202 cm High Lifting Height, Lift Hoist for Garage/Shop

3,650.00 SEK
3,650.00 SEK
Sale Sold out
Taxes included. Shipping calculated at checkout.
Features & Details

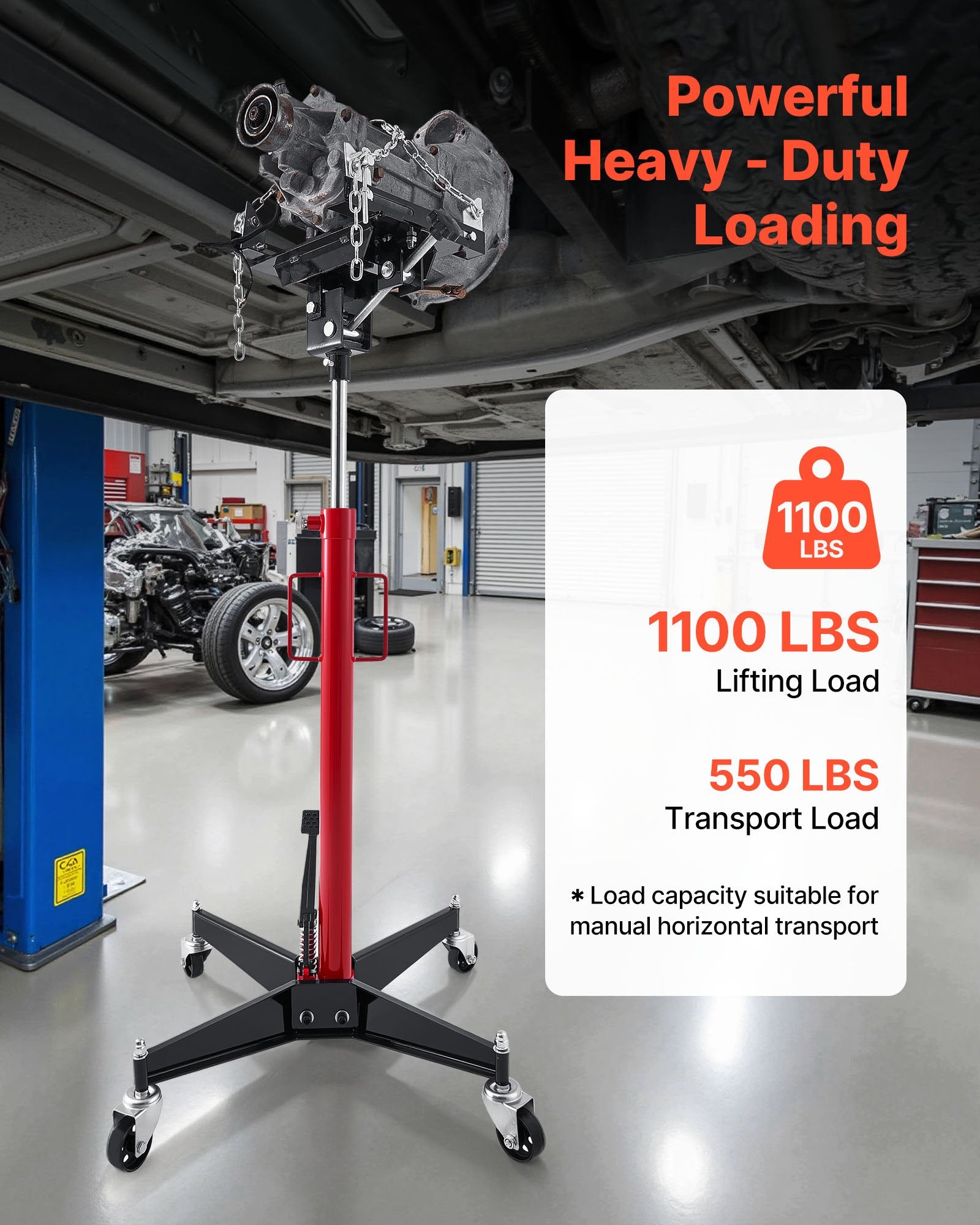

  • Heavy Load Capacity: The hydraulic transmission jack features a heavy-duty steel structure with a lifting capacity of 1100 lbs / 500 kg and a transport capacity of 550 lbs / 250 kg, easily lifting transmissions, drive shafts, and axles while maintaining reliable operation
  • High Lifting Range: Our high lift transmission jack offers a lifting range of 50-79.5 in / 1270-2020 mm, allowing easy adjustment to the desired height and providing ample workspace. Note: Vehicles must be supported by a car lift

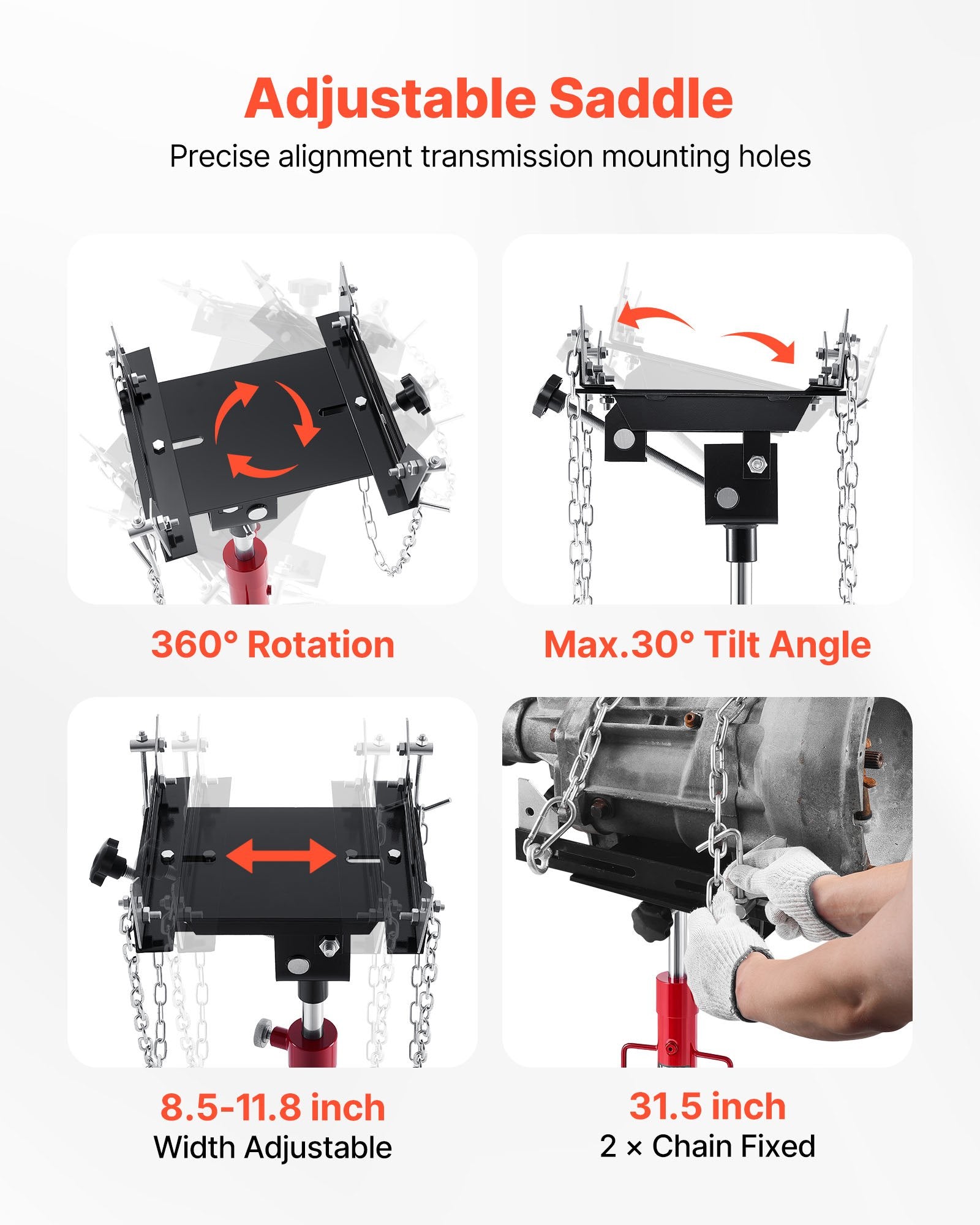

  • Adjustable Tray: The tray on this hydraulic telescoping jack rotates 360° and tilts up to 30° for precise gearbox alignment. The mounting plate adjusts in width to fit different transmissions, improving repair accuracy. Note: Secure parts with chains to avoid falling

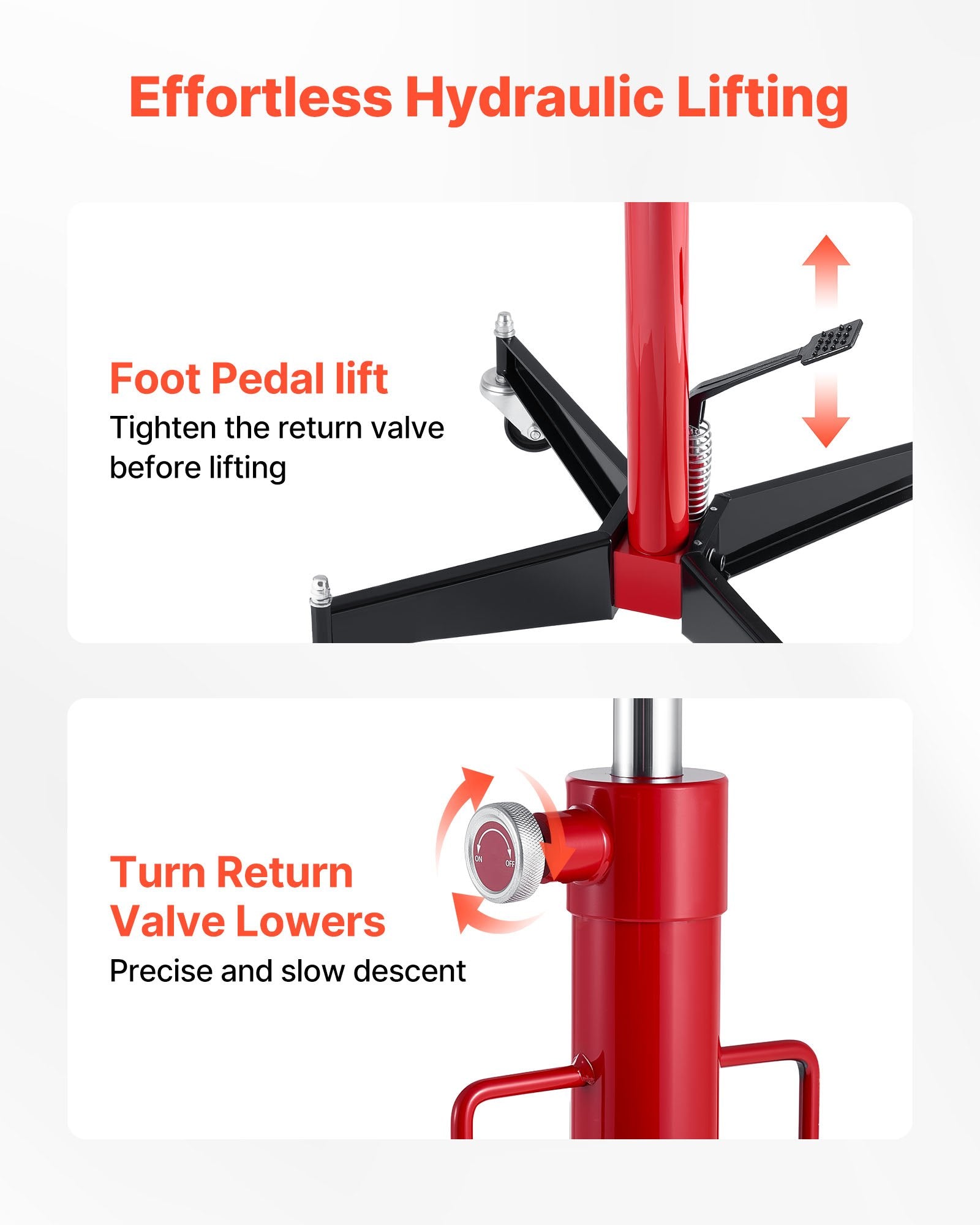

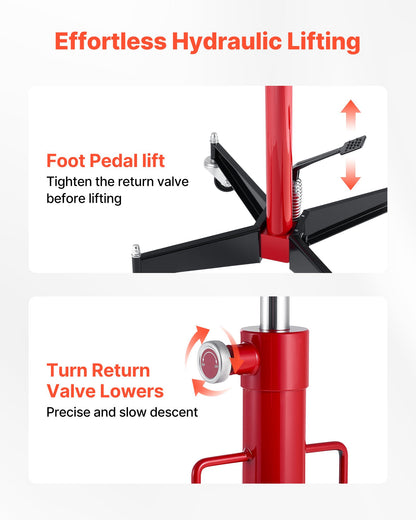

  • Foot-Operated Hydraulic: The trans jack operates via a foot pedal, eliminating manual lifting and providing smooth, effortless raising and lowering. The knob-type release valve allows controlled descent, reducing sudden drops
  • 360° Mobility: The transmission jack comes with four large swivel castors paired with an X-shaped base, enabling flexible movement in the garage while remaining sturdy and stable during operation
Product Specification
  • Lifting Stroke: 29.5 in / 750 mm
  • Type: European Style Pallet Type
  • Max. Support Height (surface to ground): 79.5 in / 2020 mm
  • Lifting Capacity: 1100 lbs / 500 kg
  • Transport Capacity: 550 lbs / 250 kg
  • Item Model Number: GW-0.5
  • Single or Dual Piston: Single Piston

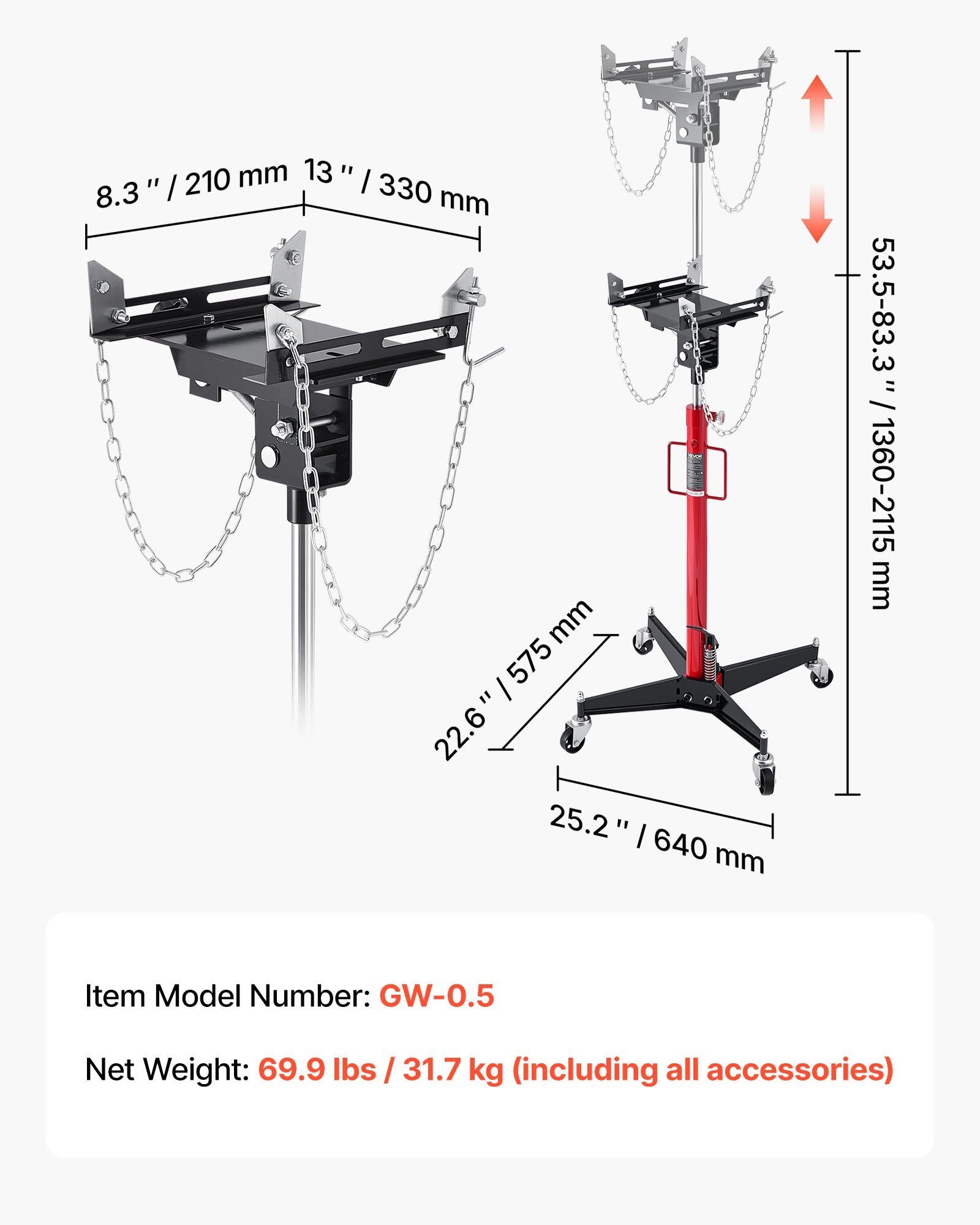

  • Product Dimensions: 25.2 x 22.6 x 53.5–83.3 in / 640 x 575 x 1360–2115 mm
  • Min. Support Height (surface to ground): 50 in / 1270 mm
  • Net Weight: 69.9 lbs / 31.7 kg
  • Main Material: Frame: Q235B
  • Piston Rod: 45#
View full details
